Product Details
-
- LiFePO4 Energy Storage Battery
-

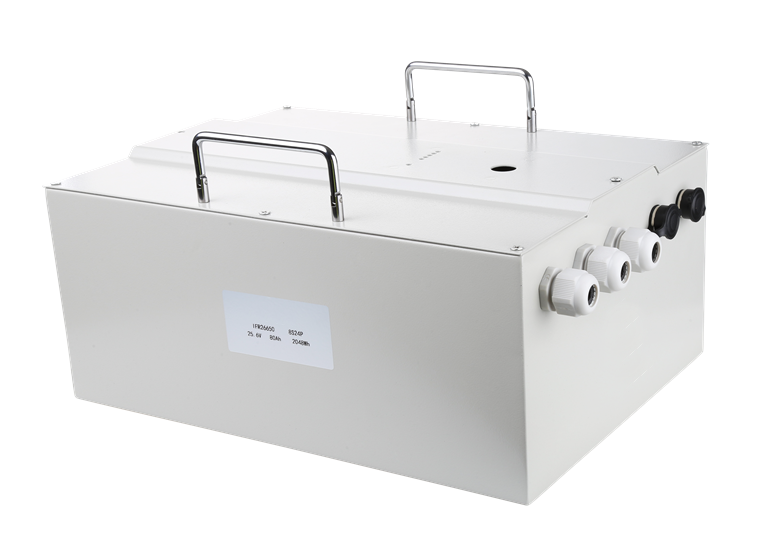

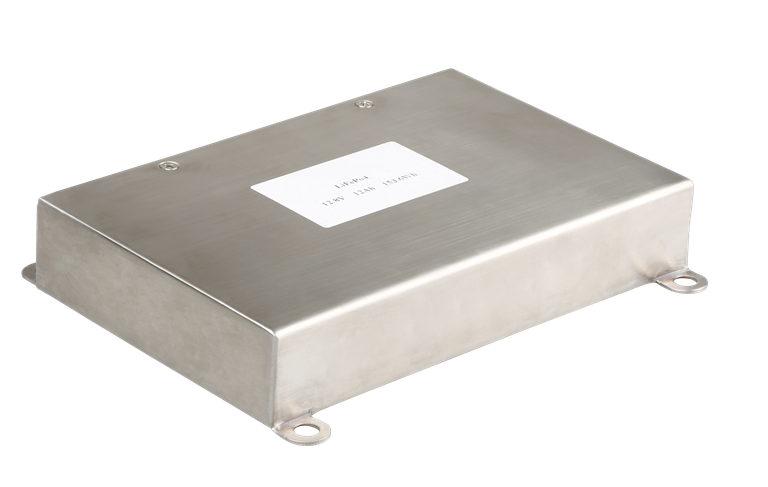

Energy Storage Battery is multiple of LiFePO4 cylindrical cells assembled and connected with protection board or BMS, and installed in an enclosure to build a complete battery. The battery with customized voltage and power output ( discharging current or kWh ) is ready to integrate any applications.
The information contained in this document is subject to change without prior notice and for reference only.
It should not be used as a basis for product guarantee or warranty.

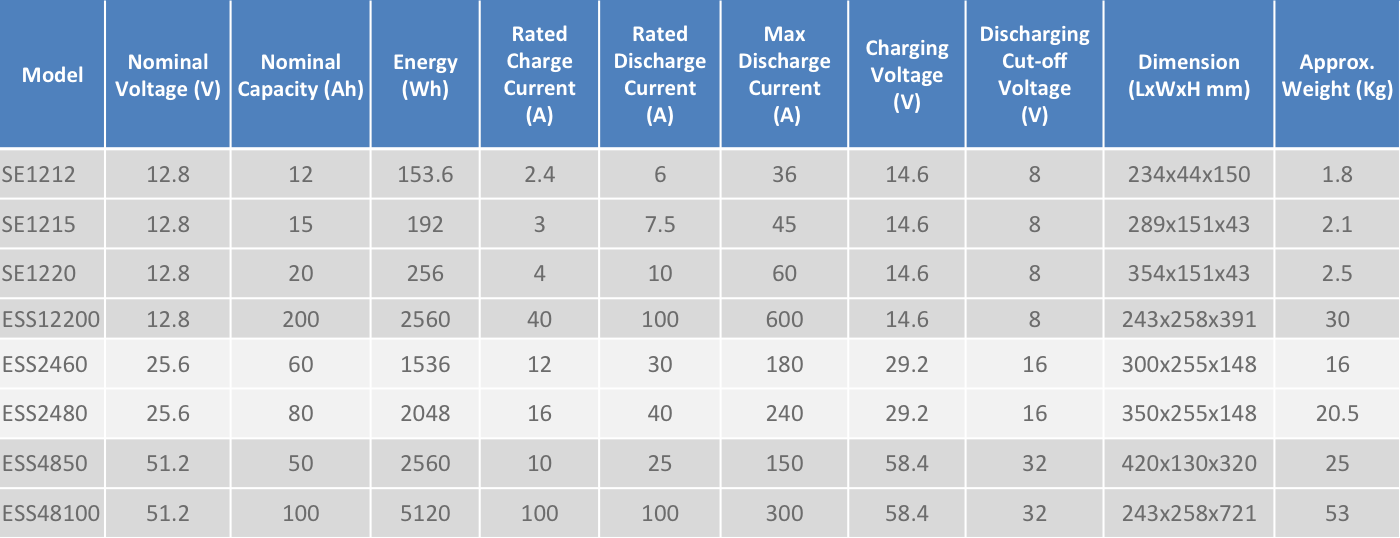

# Please consult us for more models beyond this list.
SE1212
SE1220
SE1215
ESS12200
ESS2460
ESS2480
ESS4850
ESS4810
• Lithium Iron Phosphate (LiFePO4) Battery
• Safest lithium chemistry
• High energy density

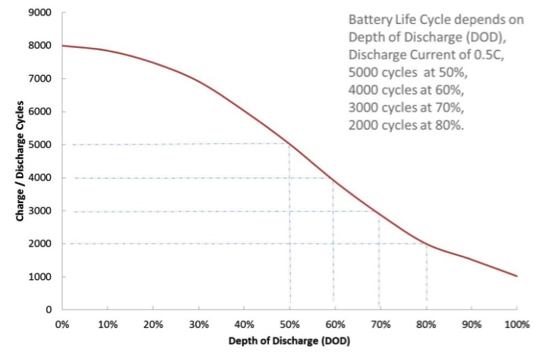

• Efficient & long-lasting up to 7000+ cycles
Typical options
• Core cell : IFR32650, IFR26650, IFR22650
• Voltage : 12V, 24V, 48V
• Capacity : 50Ah ~ 1000Ah or customized
• Output : 600Wh ~ 48kWh or higher, max
discharge at 3C
Customization
• Selectable core cell, voltage and output are
customized for energy storage system
Ready for installation
• Battery with enclosure is ready for
installation for energy storage system
Replacement
• Plug & play replacement for maintenance

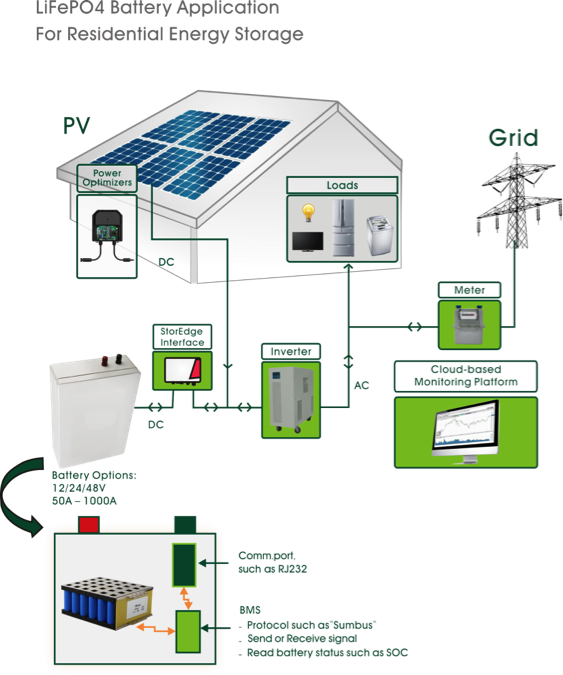

Applications
The energy storage battery is applicable for
commercial or residential purposes.
Multiple units are connected up to MWh for
renewable energy system.
• Energy Storage System
• Solar Energy Storage
• Solar Street Lighting
• Medical
• Telecom
• Robotic
• UPS
