Product Details

lithium iron phosphate battery pack

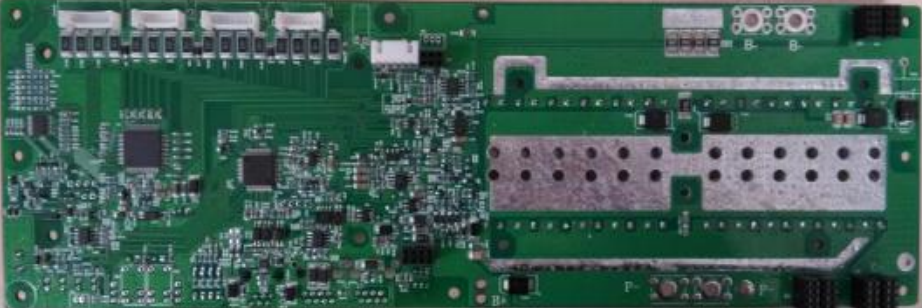

    Energy Storage Battery is multiple of LiFePO4 cylindrical cells assembled and connected with protection board or BMS, and installed in an enclosure to build a complete battery. The battery with customized voltage and power output ( discharging current or kWh ) is ready to integrate any applications.

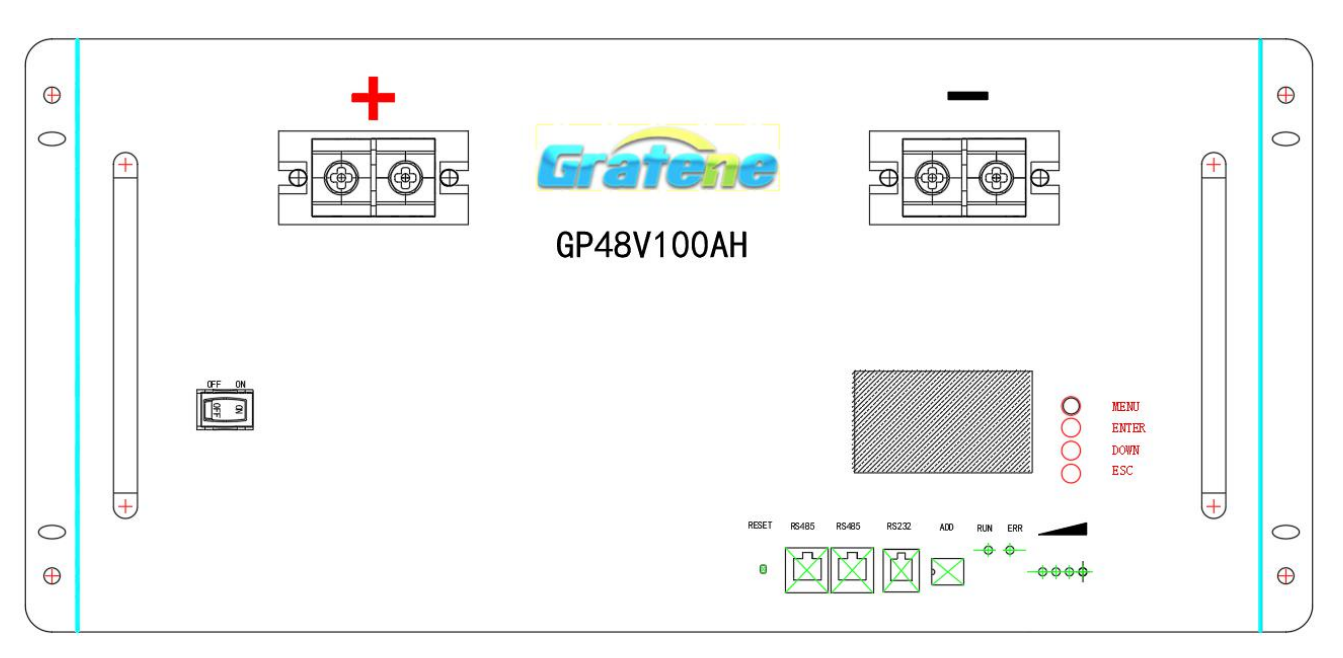

This mode is GP48V100Ah,with communication function(RS232+double RS485), the BMS continuously


overcurrent 100A,20Acurrent limited, fence terminal,100A air switch.





(Test condition) GP48V100AH



Unless otherwise specified,all tests are performed under the following conditions(standard test


condition):


The environment temperature:25±5℃(If the surrounding temperature < 20℃,the battery should be


stood more than 5H on the condition of 20℃ or higher,and test again.


The environment humidity: 30%~80%


The atmospheric pressure:86kpa~106kpa


The battery pack standard charge and discharge


The standard charge:charge the pack at constant current and voltage of 40A to a cut-off voltage


of 54V,a cut-off current of 0.2 C(2A);


The standard discharge:discharge the pack at constant current and voltage of 40A to a cut-off voltage


of 42.5V;


Qualified capacity:100Ah
