Product Details
-
- LiFePO4 Electric Vehicle Battery
-

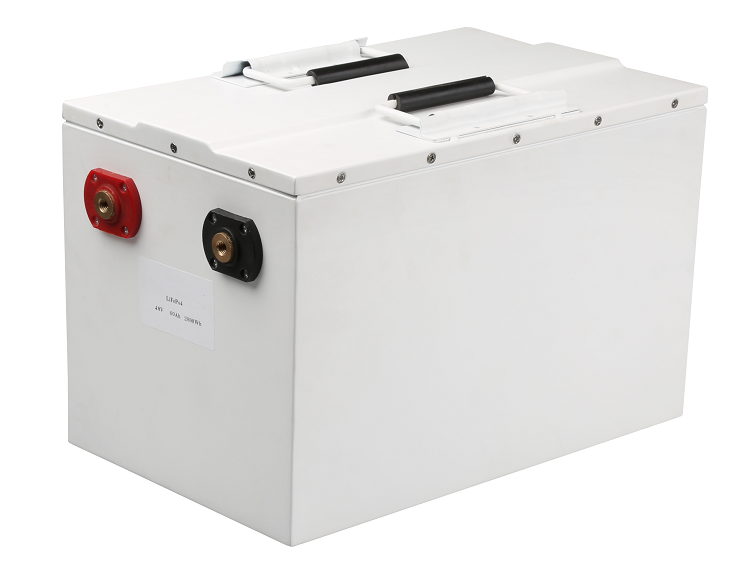

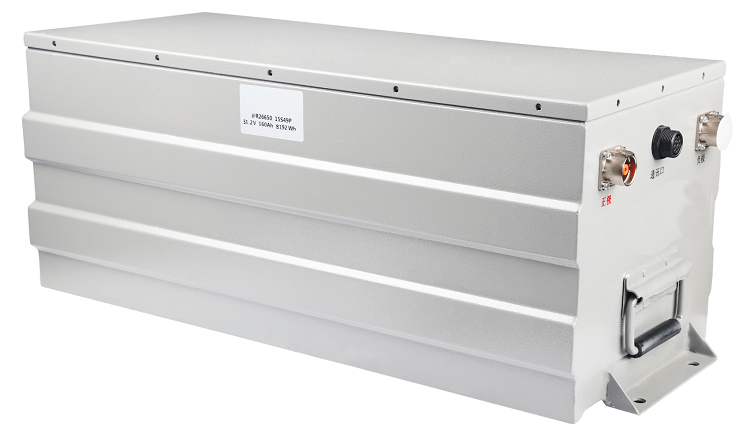

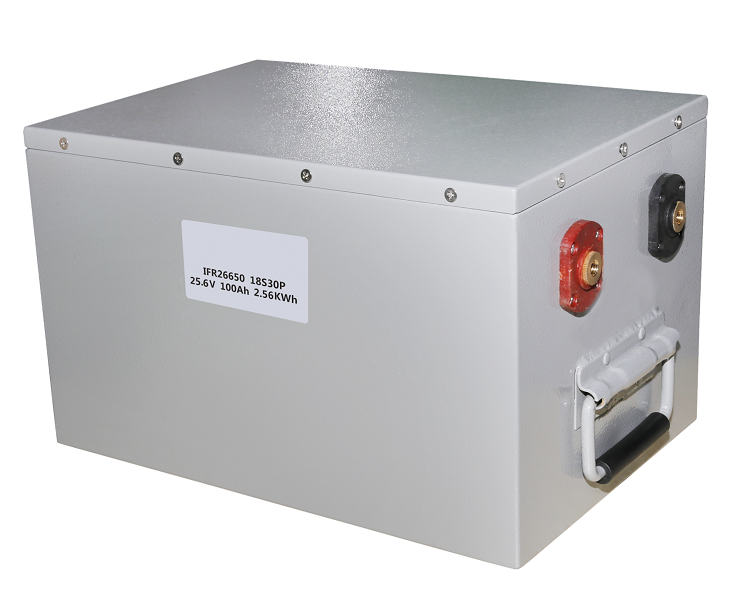

Energy Storage Battery is multiple of LiFePO4 cylindrical cells assembled and connected with protection board or BMS, and installed in an enclosure to build a complete battery. The battery with customized voltage and power output ( discharging current or kWh ) is ready to integrate any applications.
The information contained in this document is subject to change without prior notice and for reference only.
It should not be used as a basis for product guarantee or warranty.

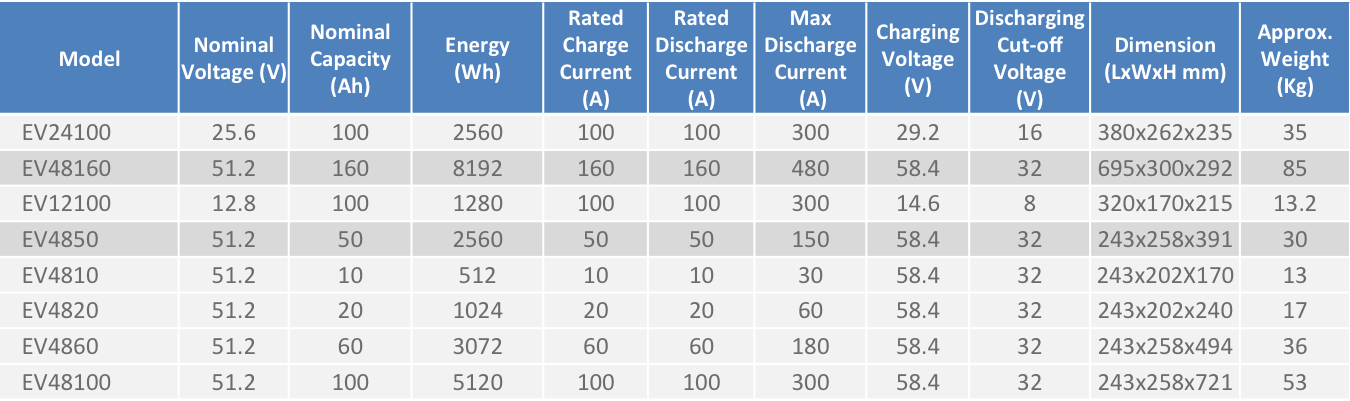

# Please consult us for more models beyond this list.
EV24100
EV48160
EV12100
EV4580
Features
• Lithium Iron Phosphate (LiFePO4) Battery
• Safest lithium chemistry
• High energy density

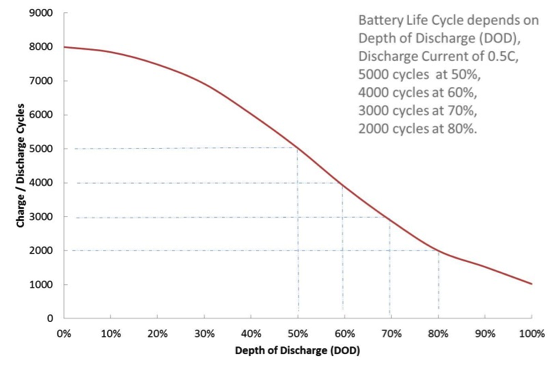

• Efficient & long-lasting up to 7000 cycles
Typical options
• Core cell : 32650, 26650, 22650
• Voltage : 12V, 24V, 48V or customized
• Capacity : 50Ah ~ 1000Ah or customized
• Output : 600Wh ~ 48kWh or higher, max
discharge at 3C, instant discharge
up to 5C
Customization
• Selectable core cell, voltage and power
output are customized as electric vehicle
battery
Ready for installation
• Battery with enclosure is ready for installation
Replacement
• Plug & play replacement for maintenance

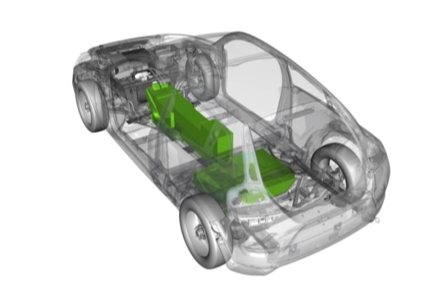

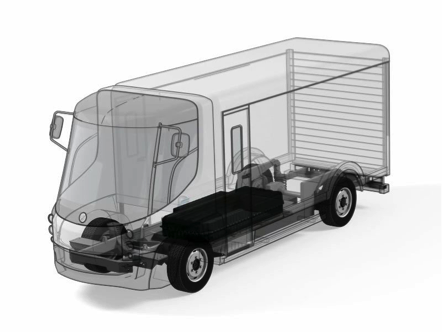

Applications
The battery is applicable to different kinds of
electric vehicles.
Multiple units are connected for higher voltage
and power output.
• Electric Motorcycle
• Electric Forklift
• Electric Truck
• Mini-Vehicle
• Golf Cart
