Product Details
-
- LiFePO4 Battery Packs
-
Energy Storage Battery is multiple of LiFePO4 cylindrical cells assembled and connected with protection board or BMS, and installed in an enclosure to build a complete battery. The battery with customized voltage and power output ( discharging current or kWh ) is ready to integrate any applications.
The information contained in this document is subject to change without prior notice and for reference only.
It should not be used as a basis for product guarantee or warranty.

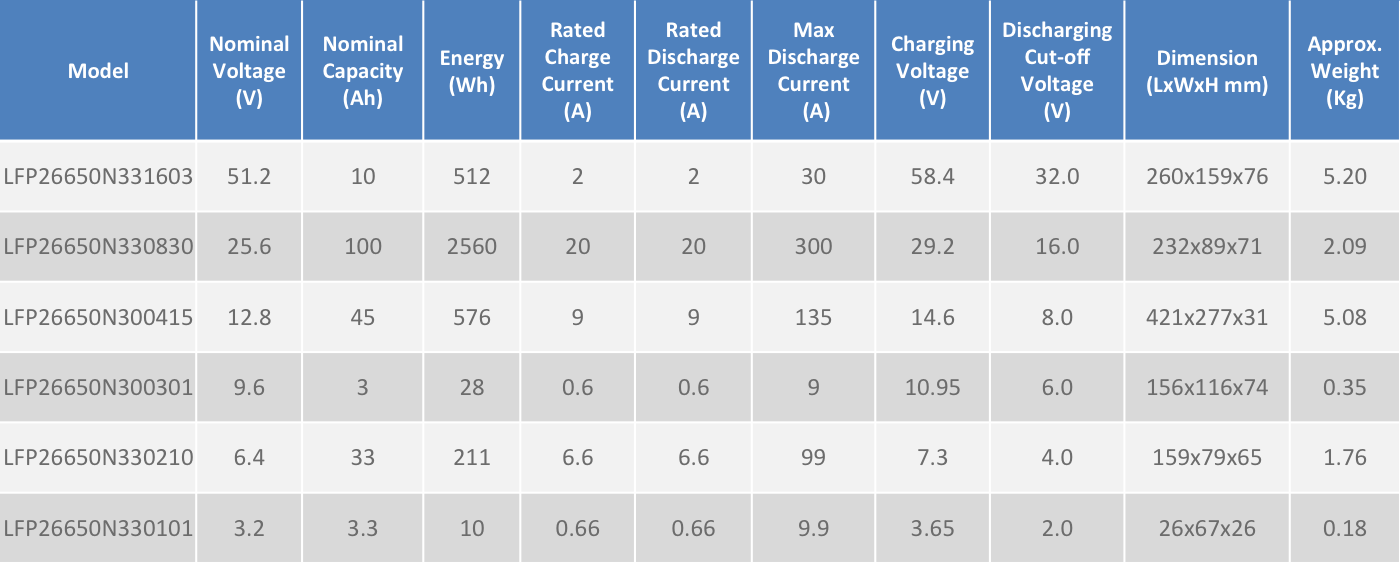

# Please consult us for more models beyond this list.

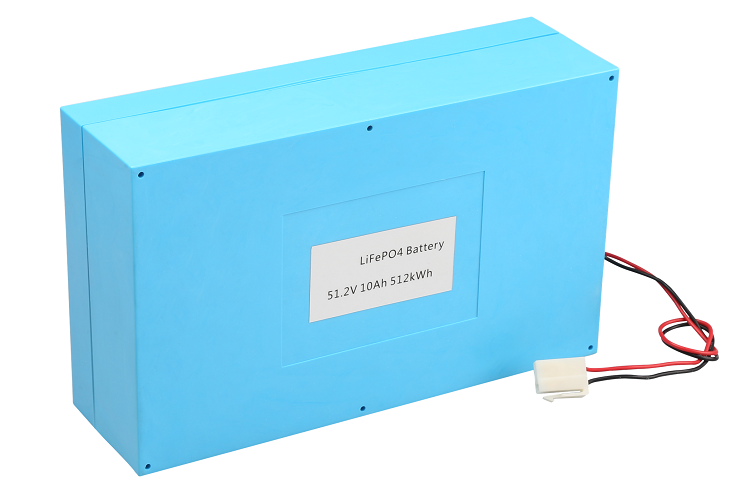

LFP26650N331603

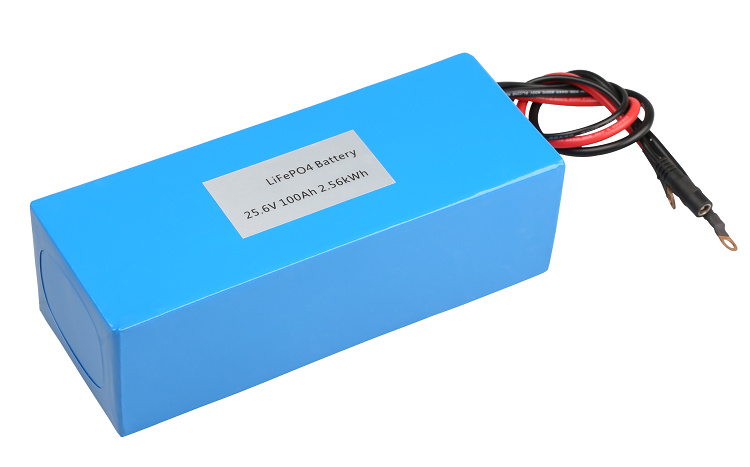

LFP26650N330830

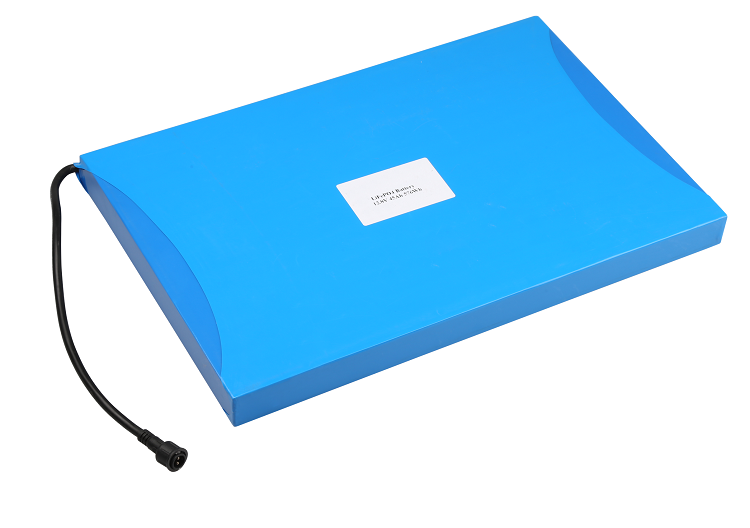

LFP26650N300415

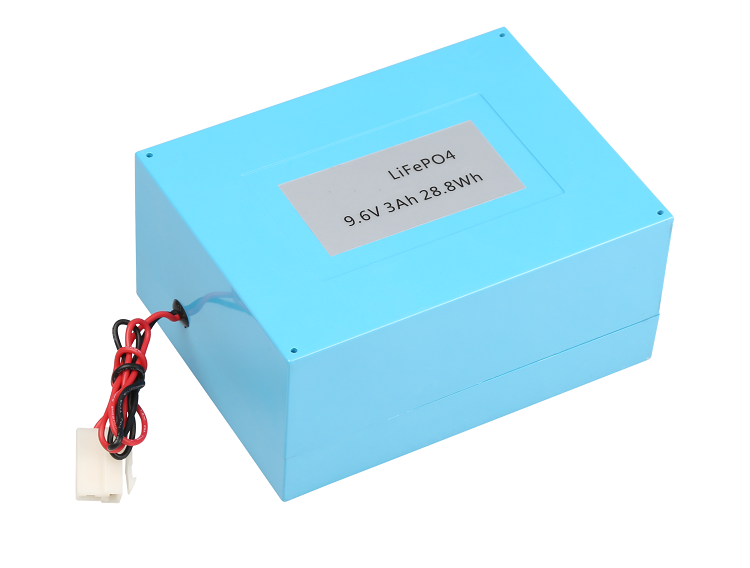

LFP26650N300301

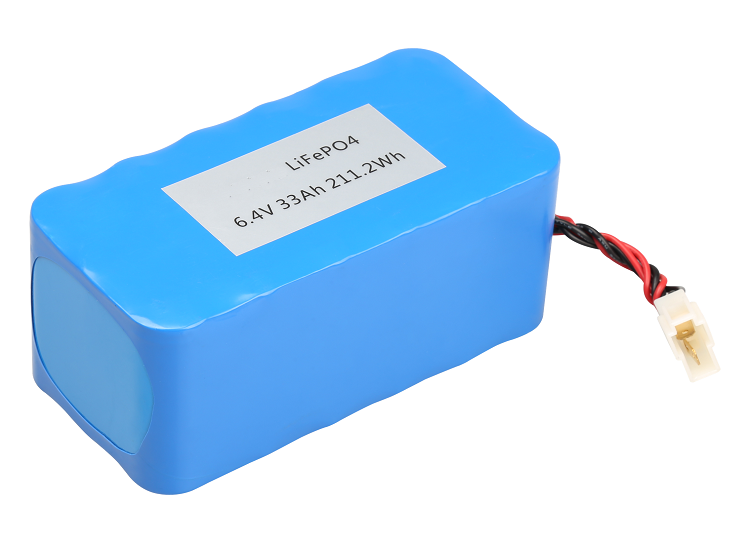

LFP26650N330210

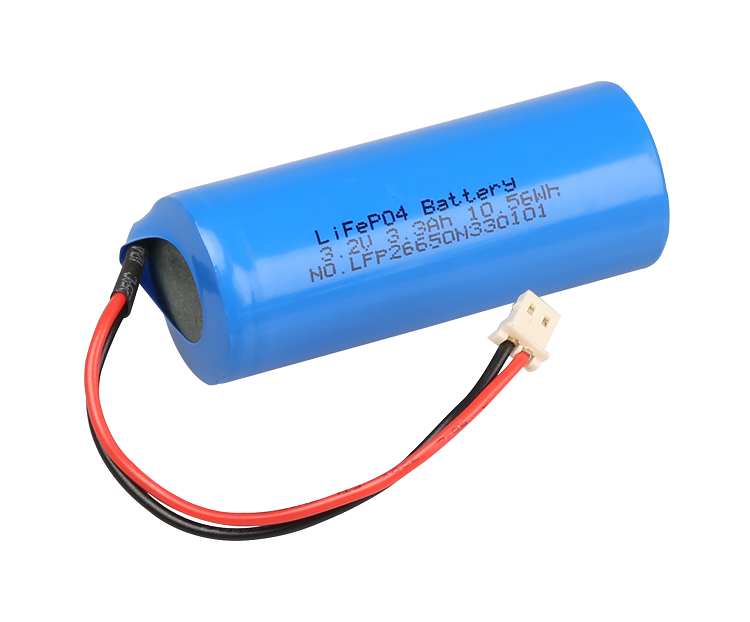

LFP26650N330101
Features
• Lithium Iron Phosphate (LiFePO4) Battery
• Safest lithium chemistry
• High energy density, 120-130kWh/kg
• Efficient & long-lasting up to 7000+ cycles
• Good High Temperature Performance
• Good High Rate Discharging Performance
• Excellent Stability
Characteristics
• Typical cell : IFR32650, IFR26650, IFR22650
• Pack Voltage : 3.2V or above
• Pack Capacity : as of customization
• Output : as of customization, max discharge @3C
Battery Pack Assembly
• Cell Models Variety Available
• Multiple cells assembled with Protection Circuit
Board (PCB), Wire & Connector Available
• Battery Modules or Units Available for Variety
Applications
Replacement
• Plug & play replacement in Battery Pack Level
for maintenance
Applications
The battery is applicable for industrial, commercial
or residential purposes.
Battery Modules or Units are connected from Wh
up to MWh for renewable energy system.
• Energy Storage
• Solar Street Lighting
• Medical
• Telecom
• Robotic
• UPS
