Li-ion Batteries battery pack

Product Details

Li-ion Batteries battery pack
    Energy Storage Battery is multiple of LiFePO4 cylindrical cells assembled and connected with protection board or BMS, and installed in an enclosure to build a complete battery. The battery with customized voltage and power output ( discharging current or kWh ) is ready to integrate any applications.
SpecificationsProduct advantages


    The information contained in this document is subject to change without prior notice and for reference only.
    It should not be used as a basis for product guarantee or warranty.
    # Please consult us for more models beyond this list.

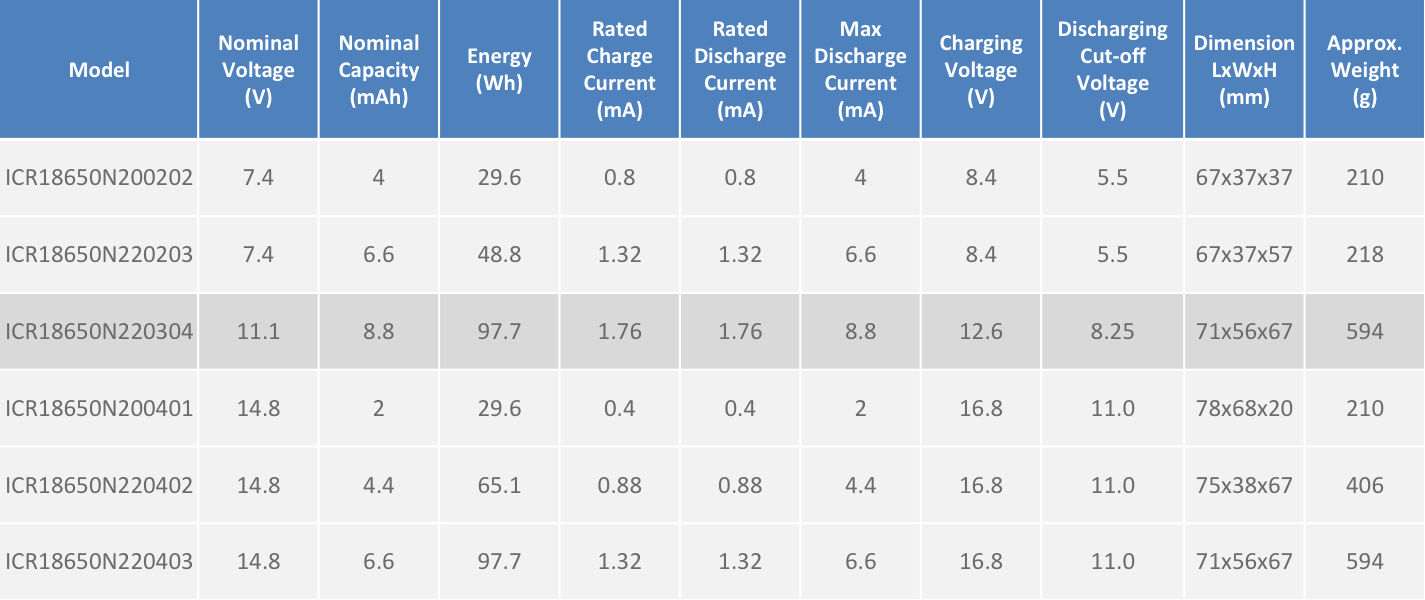

    ICR18650N200202


    ICR18650N220203


    ICR18650N220304


    ICR18650N200401

     Features

     • Lithium-Nickel-Cobalt-Manganese(NCM) Chemistry

     • Certified high quality meets international safety
       standard such as EN62133 and UL.

     • High energy density

     • High drain discharging or special discharging
       requirements are also available.

      Characteristics

    • Typical cell      : 14500, 18650, 26650

    • Pack Voltage   : 3.7V

    • Pack Capacity :  as of customization

    • Output             :  as of customization



     Battery Pack Assembly

     • Cell Models Variety Available

     • Multiple cells assembled with Protection
      Circuit Board (PCB), Wire & Connector Available

    • Battery Modules or Units Available for Variety
     Applications


     Replacement

    • Plug & play replacement in Battery Pack Level
     for maintenance


     Applications


     The battery is applicable for industrial, consumer
     purposes.
     Multiple cells are connected for different high power
     applications such as,

     • Medical

     • Telecom

     • Robotic

     • Torch

     • Toys
